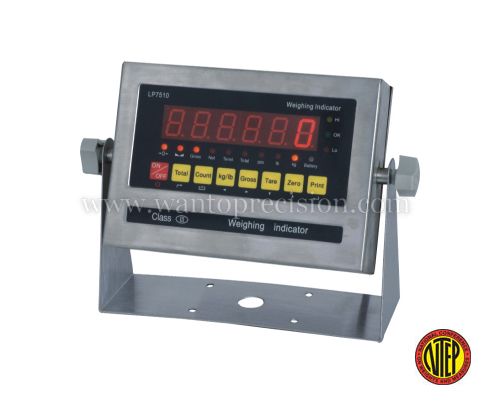

LP7510 Weighing indicator housed in a durable stainless steel enclosure. It is equipped with a large easy to read 6 digits 0.8’’ LED or LCD display. Capable of powering up to 6-350ヘ load cells, this simple device can handle a multitude of functions. A full duplex RS-232 port can transmit data on demand or continuously to match the input requirement of a wide variety of devices including printers. Remote displays and computers. And the optional I/O card and can be connected with external control equipment to the perform the automatic control.

í High Quality / Low Cost

í NTEP Approved for 5000 Divisions

í Stainless steel or mild steel Enclosure

í Full Duplex RS-232 SerialPort

í Data hold function

í I/O Card to perform automatic control external machine (option)

í Display up to 30,000 graduations

í Drives up to six 350ヘ load cells

í Operates on AC Adapter or 9 Volt DC

í 4-20mA analog output

SPECIFICATIONS

Accuracy class 6000 e

Resolution display: 30, 000 ADC: 2,000,000

Zero stability error TK₀ < 0.1レV//K

Span stability error TK_spn < 【 6 ppm//K

Conversion time 50 ms

Sensitivity (internal) 0.12 レV /count

Input voltage -30~30mV DC

Excitation circuit 5 VDC, 4 wire connection, all strain gauge,

min. 50ヘ, e.g.: 6 load cell of 350ヘ

AC power AC100~250V

DC power DC6V/4Ah rechargeable batter,700mA。

Operation temperature -10 ∑Cto40 ∑C

Storage temperature -40 ∑Cto70 ∑C

Indicator Dimensions:7.87’’(L) X2.95’’(W) X7.17’’(H)
