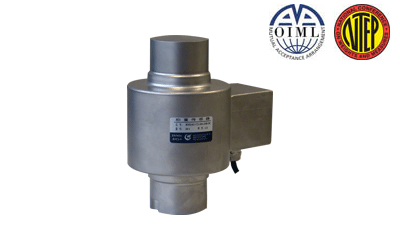

◆BM14G load cells are available in the capacities 10t to 50t .
◆Strainless steel construction,hermetically welded,oil-proof,
waterproof and anti-corrosive gas and medium making it
lightning protected in all kinds of environment.
◆Column structure,anti-reversal design,good self-aligning ability,
suitable for electronic platform scales,automobile testing facilities,
hopper scales and other electronic weighing devices.

Important Features

◆Capacity 10t to 50t .
◆High accuracy.
◆Strainless steel construction.
◆Easy installation and reliable
performance.
◆With OIML approval.

Capacity

t

10/20/30/40/50

Accuracy class

C2

C3

C4

A5S

A5M

Approval

OIML R60 C3

Maximum number of
verification interval

n max

2000

3000

4000

5000

5000

Minimum load cell
verification interval

v min

Emax/5000

Emax/10000

Emax/14000

Emax/15000

Emax/15000

Combined error

(%FS)

≤±0.030

≤±0.020

≤±0.018

≤±0.018

≤±0.026

Creep

(%FS/30min)

≤±0.024

≤±0.016

≤±0.012

≤±0.012

≤±0.017

Temperature effect
on sensitivity

(%FS/10℃)

≤±0.017

≤±0.011

≤±0.009

≤±0.009

≤±0.013

Temperature effect
on zero

(%FS/10℃)

≤±0.023

≤±0.015

≤±0.010

≤±0.010

≤±0.014

Output sensitivity

(mv/v)

2.0 ± 0.02

Input resistance

( Ω )

700 ± 7

Output resistance

( Ω )

703 ± 4

Insulation
resistance

(M Ω )

≥ 5000(50VDC)

Zero balance

(%FS)

1.0

Temperature,
compensated

( ℃ )

-10～+40

Temperature,
allowed

( ℃ )

-35～+65

Excitation,
Recommended

(V)

5～12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300
