| Instroduction producto:
|

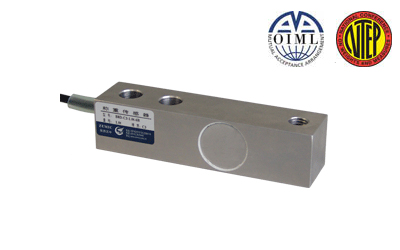

◆H8C load cells are available in the capacities 1Klb
to 20Klb and 0.5t to 10t.
◆Alloy steel,sealed by adhesive inside,oil-proof,waterproof
and anti-corrosion, suitable for all kinds of environment.
◆Single shear beam, easy for installation,suitable for
electronic platform scales,hopper scales and other electronic
weighing devices.
◆Safe and anti-explosive product,can be used in
atrocious environment and hazardous areas. |
Features
◆Capacity:1Klb to 20Klb
and 0.5t to 10t.
◆High accuracy.
◆Alloy steel construction.
◆Low profile.
◆With OIML approval.
◆With NTEP approval. |
Specifications
|
Capacity |
t |
0. 5/1/1.5/2/2.5/3/5/10 |
|
Klb |
1/1.5/2/2.5/3/4/5/5KSE/7.5/10/15/20 |
|
Accuracy class |
|
C2 |
C3 |
C4 |
A5M |
B10M |
|
Approval |
|
|
OIML R60 C3 |
|
III 5000
multiford |
III L 10000
multiford |
|
Maximum number of
verification intervals |
n max |
2000 |
3000 |
4000 |
5000 |
10000 |
|
Minimum load cell
verification interval |
v min |
Emax/5000 |
Emax
/10000 |
Emax
/14000 |
Emax
/15000 |
Emax
/10000 |
|
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.026 |
≤±0.050 |
|
Creep |
%FS/30min |
≤±0.024 |
≤±0.016 |
≤±0.012 |
≤±0.017 |
≤±0.040 |
|
Temperature effect
on sensitivity |
(%FS/10℃) |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.013 |
≤±0.040 |
|
Temperature effect
on zero |
(%FS/10℃) |
≤±0.023 |
≤±0.015 |
≤±0.010 |
≤±0.014 |
≤±0.020 |
|
Output sensitivity |
(mv/v) |
2.0 ±0.002 |
3.0±0.003 |
|
Input resistance |
(Ω) |
350±3.5 |
|
Output resistance |
(Ω) |
350±3.5 |
|
Insulation resistance |
(MΩ) |
≥ 5000(100VDC) |
|
Zero balance |
(%FS) |
1.0 |
|
Temperature,
compensated |
(℃) |
-10～+40 |
|
Temperature,allowed |
(℃) |
-35～+70 |
|
Excitation,
Recommended |
(V) |
5～12(DC) |
|
Excitation,Max |
(V) |
18(DC) |
|
Safe overload |
(%FS) |
150 |
|
Ultimate overload |
(%FS) |
300 |
|
|
|
|
|
|
|
|
Note:Output sensitivity of S1 type is 2.0 ±0.002

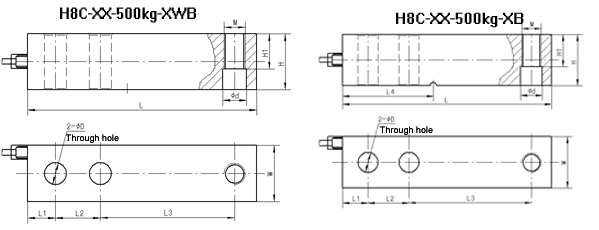

Outline Dimension mm(inch)
|
Capacity |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
W |
W1 |
D |
d |
M |
|
0.5t,1～2t
1～4K,
5KSE |
130
(5.12) |
15.8
(0.62) |
25.4
(1.0) |
76.2
(3.0) |
54.2
(2.13) |
31.8
(1.25) |
15.8
(0.62) |
31.8
(1.25) |
34
(1.34) |
13.5
(0.53) |
13.5
(0.53) |
M12×1.75
1/2
－20UNF |
|
2.5～5t
5～10K |
171.5
(6.75) |
19.1
(0.75) |
38.1
(1.5) |
95.3
(3.75) |
77.2
(3.04) |
38.1
(1.5) |
18.8
(0.74) |
38.1
(1.5) |
40
(1.57) |
19.8
(0.78) |
19.8
(0.78) |
M18×1.5
3/4
－16UNF |
|
10t,20K |
222.3
(8.75) |
25.4
(1.0) |
50.8
(2.0) |
120.7
(4.75) |
101.6
(4) |
50.8
(2.0) |
25.4
(1.0) |
50.8
(2.0) |
52.4
(2.06) |
26.92
(1.06) |
26
(1.02) |
M24×2
1
－12UNF | |
