| Instroduction producto:
|

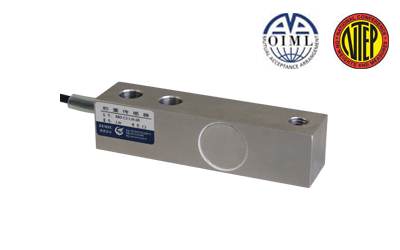

◆B8D load cells are available in the capacities 250lb to 20Klb
and 0.5t to 5t.
◆Strainless steel construction,potted by adhesive inside.
oil-proof,waterproof and anti-corrosive gas and medium making it
suitable for all kinds of environments.
◆Single shear beam,easy for installation, suitable for electronic
truck scales,automobile testing facilities,hopper scales and other
electronic weighing devices.
◆Safe and anti-explosive product,can be used in atrocious
environment and hazardous areas. |
Important Features
◆Capacities:250lb to 20Klb and
0.25t to 5t.
◆High accuracy.
◆Strainless steel construction.
◆Low profile.
◆With OIML approval. |
Specifications
|
Capacity |
t |
0.1/0.15/0.2/0.25/0.3/0.4/0.5/0.75/1/1.5/2/3/5/7.5/10 |
|
lb |
250/500/750/1K/1.5K/2K/2.5K/2.5KLE/3K/4K/5K/5KSE/7.5K/10K/15K/20K |
|
Accuracy |
|
C2 |
C3 |
A5M |
B10M |
|
Approval |
|
|
OIML R60 C3 |
|
|
|
Maximum number of
verification intervals |
n max |
2000 |
3000 |
5000 |
10000 |
|
Minimum load cell
verification interval |
v min |
Emax/5000 |
Emax/10000 |
Emax/15000 |
Emax/10000 |
|
Combined error |
(%FS) |
≤± 0.030 |
≤± 0.020 |
≤± 0.026 |
≤± 0.050 |
|
Creep |
(%FS/30min) |
≤± 0.024 |
≤± 0.016 |
≤± 0.017 |
≤± 0.040 |
|
Temperature effect
on sensitivity |
(%FS/10℃) |
≤± 0.017 |
≤± 0.011 |
≤± 0.013 |
≤± 0.040 |
|
Temperature effect
on zero |
(%FS/10℃) |
≤± 0.023 |
≤± 0.015 |
≤± 0.014 |
≤± 0.020 |
|
Output sensitivity |
(mv/v) |
3.0±0.008 |
|
Input resistance |
(Ω) |
350±3.5 |
|
Output resistance |
(Ω) |
350±3.5 |
|
Insulation resistance |
(MΩ) |
≥ 5000(50VDC) |
|
Zero balance |
(%FS) |
1.0 |
|
Temperature,
compensated |
(℃) |
-10～+40 |
|
Temperature,allowed |
(℃) |
-35～+65 |
|
Excitation,
Recommended |
(V) |
5～12(DC) |
|
Excitation,Max |
(V) |
18(DC) |
|
Safe overload |
(%FS) |
150 |
|
Ultimate overload |
(%FS) |
300 |
Outline Dimension mm(inch)
|
Capacity |
L |
L1 |
L2 |
L3 |
d |
H |
W |
D |
H1 |
M |
|
250lb,500lb,
750lb,1Klb |
130
(5.12) |
15.7
(0.62) |
25.4
(1.0) |
76.2
(3.0) |
13.46
(0.53) |
30.2
(1.19) |
30.7
(1.20) |
13.4
(0.53) |
16
(0.63) |
M12-6H
1/2-20UNF-2B |
|
0.5t,1t,2t
2.5K,3K,
4K,5KSE |
130
(5.12) |
15.7
(0.62) |
25.4
(1.0) |
76.2
(3.0) |
13.4
(0.52) |
31.23
(1.23) |
31.32
(1.23) |
13.4
(0.53) |
15.75
(0.62) |
M12-6H
1/2-20UNF-2B |
|
3t,5t
2.5KSE,5K,
7.5K,10K,15K |
171
(6.73) |
19
(0.75) |
38.1
(1.5) |
95.2
(3.75) |
20.65
(0.81) |
36.8
(1.45) |
36.8
(1.45) |
20.65
(0.81) |
17.78
(0.7) |
M20X2.5-6H
3/4-15UNF-2B |
|
20K |
222.25
(8.75) |
25.4
(1.0) |
50.8
(2.0) |
120.7
(4.75) |
26.9
(1.06) |
49.5
(1.95) |
49.5
(1.95) |
27.56
(1.08) |
24.78
(0.97) |
M24X2-6H
1-12UNF-2B | |
