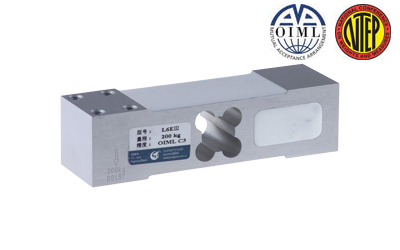

◆L6E3 load cells are available in the capacities 50kg to 300kg.
◆Alumium construction with parallel beam.
◆Silicon adhesive sealed, surface anodized and anti-corrosion.
◆Intergral structure and easy installation.
◆Suitable for electronic pricing scales, platform scales and other
electronic weighing devices.

Features
◆Capacity: 50kg to 300kg .
◆High accuracy.
◆Max. platform size: 450x450mm.
◆With OIML approval.

Capacity

kg

50/100/150/200/250/300

Accuracy

C3D

C3

C3G

Approvals

OIML R60 C3

Maximum number of
verification intervals

n max

2500

3000

4000

Minimum load cell verification interval

v min

Emax/5000

Emax/7000

Emax/11000

Combined error

(%FS)

≤±0.030

≤±0.020

≤±0.015

Creep

(%FS/30min)

≤±0.020

≤±0.0167

≤±0.0125

Temperature effect on sensitivity

(%FS/10℃)

≤±0.021

≤±0.0175

≤±0.0131

Temperature effect on zero

(%FS/10℃)

≤±0.028

≤±0.020

≤±0.0127

Output sensitivity

(mv/v)

2.0±0.2

Input resistance

(Ω)

406±6

Output resistance

(Ω)

350±3

Insulation resistance

(MΩ)

≥5000(50VDC)

Zero balance

(%FS)

2

Temperature,compensated

(℃)

-10～+40

Temperature,operating

(℃)

-35～+65

Excitation, Recommended

(V)

5～12(DC)

Excitation,Max

(V)

18(DC)

Safe overload

(%FS)

150

Ultimate overload

(%FS)

300

Corner correction

0.02% load value/100mm
