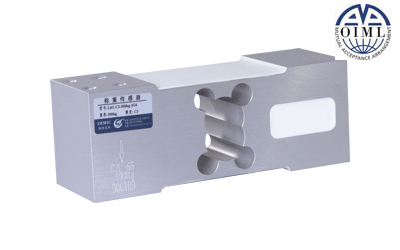

| Nombre del producto: L6G(Zemic) |
Instroduction producto:
◆L6G load cells are available in the capacities 50kg to 600kg.
◆Alumium construction with parallel beam.
◆Silicon adhesive sealed, surface anodized and anti-corrosion.
◆Intergral structure and easy installation.
◆Suitable for pricing scales, platform scales and other
electronic weighing devices. |
Features
◆Capacity:50kg to 600kg .
◆High accuracy.
◆Max. platform size:600x600mm.
◆Intergral installation.
◆With OIML approval. |
Specifications
|
Capacity |
kg |
50/100/150/200/250/300/500/600 |
|
Accuracy |
|
C3D |
C3 |
C3G |
| Approvals |
|
|
OIML R60 C3 |
|
|
Maximum numberof
verification intervals |
n max |
2500 |
3000 |
4000 |
|
Minimum load cell
verification interval |
v min |
Emax/5000 |
Emax/7000 |
Emax/11000 |
|
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.015 |
|
Creep |
(%FS/30min) |
≤±0.020 |
≤±0.0167 |
≤±0.0125 |
|
Temperature effect on sensitivity |
(%FS/10℃) |
≤±0.021 |
≤±0.0175 |
≤±0.0131 |
|
Temperature effect on zero |
(%FS/10℃) |
≤±0.028 |
≤±0.020 |
≤±0.0127 |
|
Output sensitivity |
(mv/v) |
2.0±0.2 |
|
Input resistance |
(Ω) |
406±6/1065±15 |
|
Output resistance |
(Ω) |
350±3/1000±10 |
|
Insulation resistance |
(MΩ) |
≥5000(50VDC) |
|
Zero balance |
(%FS) |
2 |
|
Temperature,compensated |
(℃) |
-10～+40 |
|
Temperature,operating |
(℃) |
-35～+65 |
|
Excitation,Recommended |
(V) |
5～12(DC) |
|
Excitation,Max |
(V) |
18(DC) |
|
Safe overload |
(%FS) |
150 |
|
Ultimate overload |
(%FS) |
300 |
| Corner correction |
|
0.02% load value/100mm |

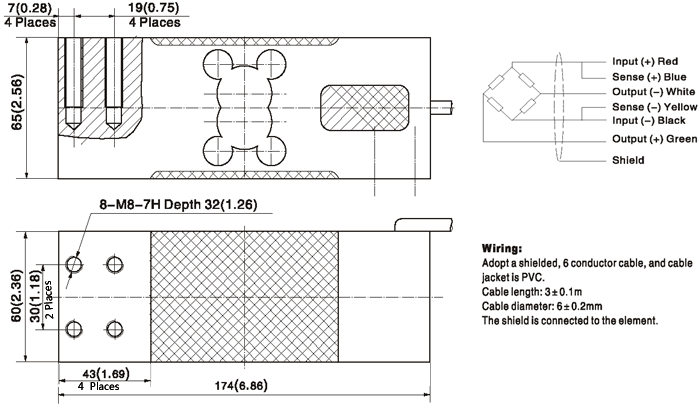

Outline Dimension mm(inch)
|
|
| |
|
|
| |
|
 |
|
