| Nombre del producto: WT-CA |
Instroduction producto:
|

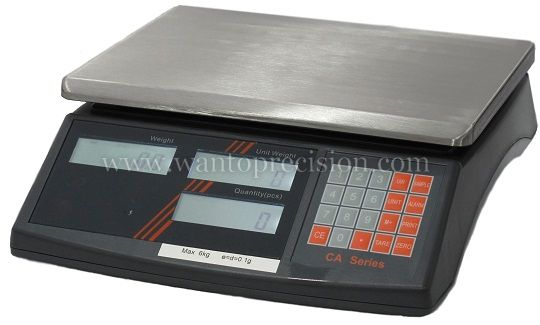

Dual counting scales are a weighing instrument for weighing and counting small parts or objects in a large container.
With a remote weighing base or platform that can be any size.Can then switch between the two scales: Counting sample on light capacity unit and switch to heavier capacity base when larger quantities are required.
1/60000 display resolution, (1/1000000 internal resolution)
real clock Time & Date
Supports remote scale of up to 4 load-cells for enhanced weighing and counting
Up to 100 PLUs with unit weight can be stored
Switchable between lb/kg/g
1 RS-232 interface (secondly RS232 and RS485 optinal)
Programmable for counting to a pre-set number of parts
Memory accumulation of count
Preset tare function
Check weighing by count or weight
Rechargeable battery with up to 90 hours of operation with auto backlight setting
3 backlit LCD displays with 0.8” digits and 21 indication status
Overload and under load protection
Model of Max capacity and division is same as CA counting scales |
|
Stabilization time |
2 second typical |
|
Pan Size |
230x290mm SST |
|
Power supply |
220~240V AC (110V optional) 50/60Hz built-in rechargeable battery 6V4AH.
Battery provide up to 90 hours of continuous use when backlight is auto model |
|
Display |
3 windows of 6 digits LCD display(17mm height). and 21 status indication |
|
Zero range |
0mV~8mV |
|
Housing |
ABS housing and Stainless steel pan(230*290mm) |
|
Keys |
0-9 numberic keys and 9 function keys |
|
ADC
External Resolution |
Σ-Δ
1/30000; 1/60000 |
|
Model (Max capacity) |
3kg/0.1g , 6kg/0.2g ,15kg/0.5g, 30kg/1g
3kg/0.05g , 6kg/0.1g ,15kg/0.2g, 30kg/0.5g |
|
Interface |
RS-232 Output |
|
Other function |
Real-time clock and units conversion (kg,lb,g) | | |
|
| |
|
|
| |
|
 |
|
